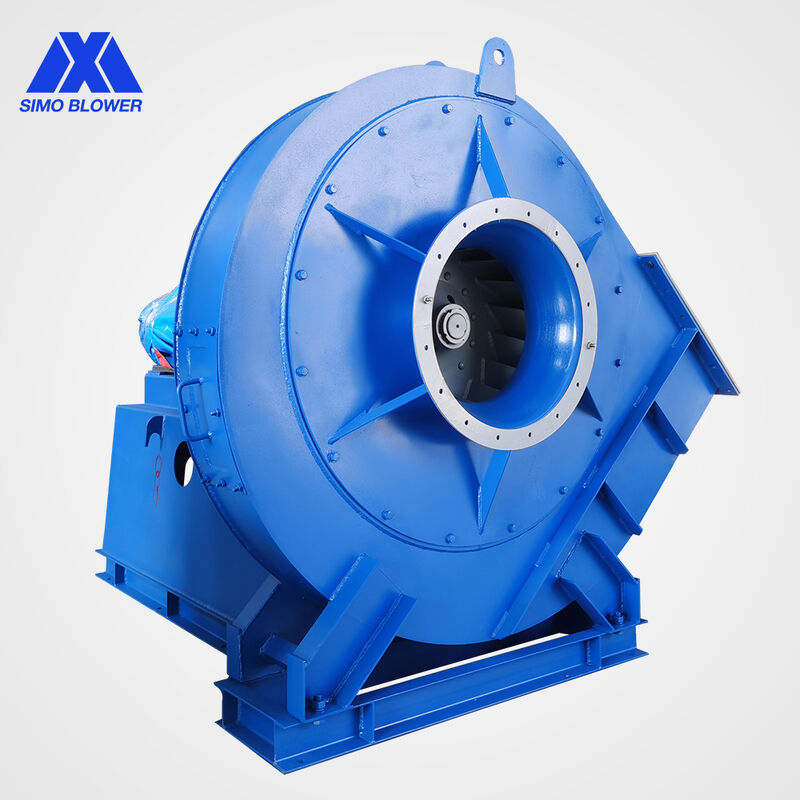

High Air Volume High Temperature Single Suction Radial Industrial Boiler Fan/Blower

Name: High Air Volume High Temperature Single Suction Radial Industrial Boiler Fan/Blower
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: 7-26
Price: 750.00 USD
Availability: InStock

Détails de produit:

Place of Origin:	CHINA
Nom de marque:	SIMO BLOWER
Certification:	CE
Model Number:	7-26

Les informations détaillées

Place of Origin:

CHINA

Nom de marque:

SIMO BLOWER

Certification:

Model Number:

7-26

Product Name:

Industrial VentilationCentrifugal Fans

Application:

Industrial, Commercial

Material:

Aluminum, Steel, Plastic

Voltage:

220V/380V/415V/440V/660V

Temperature:

≤80℃

Size:

Customized

Power source:

Three Phase AC Motor

Bearing:

SKF/FAG/By your demand

Mettre en évidence:

High Light

Mettre en évidence:

high air volume industrial boiler fan

single suction radial blower

high temperature centrifugal industrial fan

Trading Information

Minimum Order Quantity:

Prix:

$500-1000

Packaging Details:

1.export wooden case packing 2.bare package with steel pallet 3.other export package

Delivery Time:

35days(To be negotiated)

Payment Terms:

L/C, T/T

Supply Ability:

300sets 30days

Description de produit

High Air Volume High Temperature Single Suction Radial Industrial Boiler Fan/Blower

Engineered for demanding boiler applications, this high-air-volume, high-temperature single suction radial fan delivers robust performance in extreme thermal environments. Designed to handle elevated temperatures while maintaining structural integrity, it ensures reliable operation in industrial boiler systems, including combustion air supply, flue gas recirculation, and exhaust ventilation.

Product Features

This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
The current collector and impeller front plate are processed by advanced spinning process and ensure precision.
V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.
Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.
The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.

Performance

The following datas are only part of performance of our product. If you can't find the datas you need, please send us your performance requirements we will provide you customized design service.

Series no.	7-08series	Feature selection
Performance	Impeller diameter	400-3500mm
	Rotation speed	≤3000rpm
	Pressure range	3215-27349Pa
	Flow range	1049-330301/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station (Can be specified)
	Cooling method	Air cooling, Water cooling, Oil cooling (Can be specified)
	Driven mode	Direct driven, Coupling driven, Belt driven (Can be specified)
Gas composition	Gas temperature	Normal \| Customer request \| Customer request \| ≥250ºC \| Customer request
Gas composition	gas characteristic	Clean gas \| Corrosive gas \| Particulate dust \| High temperature gas \| Flammable gas, explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc (Can be specified)
	Impeller	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| Wear-resistant layer or wear-resistant liner, ceramic patch \| High temperature high quality alloy steel \| FRP, Aluminum alloy (Can be specified)
	Air inlet cone	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Casing	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Air damper	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Main shaft	High strength carbon steel, Alloy structural steel (Can be specified)
	Bearing	ZWZ, SKF, FAG, NSK (Can be specified)
Bearing housing	Cast iron
Foundation bolts	GB799-1988
Option parts	System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.
